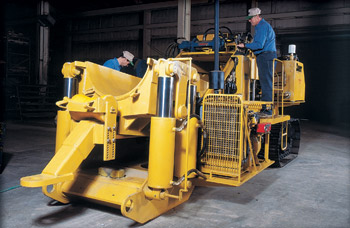

Pipe Bending Machines

1

Specifications

Model 6-20 16-30 22-36 32-42 38-48
Pipe Sizes 6"-20" 16"-30" 22"-36" 32"-42" 38"-48"
Air Compressor Quincy 325 Quincy 340 Quincy 390 Quincy 390 Quincy 390
Hydraulic Winch 10,000 lbs. 15,000 lbs. 20,000 lbs. 30,000 lbs. 30,000 lbs.
PSI Rating 3,000 3,000 3,000 3,000 3,000
Length 13'6 22'6 24'6 26'4 30'5
Width 6' 8' 8'6" 9'8" 10'7"
Height 8'6" 8'6" 9'3" 9'11" 11'2"
Weight 10,200 lbs. 36,500 lbs. 47,560 lbs. 71,250 lbs. 119,500 lbs.

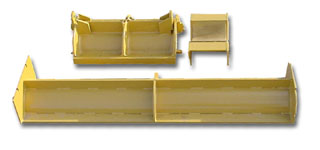

Lined Bending Sets

2
6" - 20"
Bending Sets		 16" - 30"
Bending Sets		 22" - 36"
Bending Sets		 32" - 42"
Bending Sets		 38" - 48"
Bending Sets		 48" - 60"
Bending Sets
Pipe
Sizes		 Number
of pieces		 Pipe
Sizes		 Number
of pieces		 Pipe
Sizes		 Number
of pieces		 Pipe
Sizes		 Number
of pieces		 Pipe
Sizes		 Number
of pieces		 Pipe
Sizes		 Number
of pieces
6"
8
10"
12"
14"
16"
18"
20"
3
3
3
3
3
3
3
(Die & Liners)
16"
18"
20"
22"
24"
26"
28"
30"
6
6
6
6
6
6
6
(Die & Liners)
22"
24"
26"
28"
30"
32"
34"
36"
6
6
6
6
6
6
6
(Die & Liners)
32"
34"
36"
38"
40"
42"
6
6
6
6
6
(Die & Liners)
38"
40"
42"
44"
46"
48"
6
6
6
6
6
(Die & Liners)
48"
50"
52"
54"
56"
58"
60"
6
6
6
6
6
6
(Die & Liners)
Average weight
1,200 lbs.
(545 kg)
Average volume
40 cu. Ft. (1.2 m)		 Average weight
5,200 lbs.
(2,364 kg)
Average volume
140 cu. Ft. (4.0 m)		 Average weight
5,700 lbs.
(2,591 kg)
Average volume
160 cu. Ft. (4.6 m)		 Average weight
7,300 lbs.
(3,326 kg)
Average volume
180 cu. Ft. (5.1 m)		 Average weight
12,500 lbs.
(5,663 kg)
Average volume
250 cu. Ft. (7.1 m)		 Average weight
15,000 lbs.
(6,795 kg)
Average volume
350 cu. Ft. (10 m)
