PART NUMBER |
LIST PRICE |
OUR PRICE |
| 8018539 05791 6 |
FOB Miami $ 4,249 |
FOB Miami $ 3,399.2 |
Standard Features
Subaru® Industrial EH72 Engine
• Ultra quiet & dependable V-twin engine
• Specially designed for use on LPG/natural gas
• Oversized (80mm) oil pump and integral oil coolers for lower
operating temperature
2-Pole Alternator Oversized 14.4kW
• 2/3 pitch winding for reduced harmonics (<5%)
• Simple & reliable self voltage regulated design (± 5%)
Sound Attenuated Weather Proof Enclosure
• 16 gauge Galvaneel™ (galvanized) steel or 12 gauge
aluminum with sound insulating material installed
• Composite mounting pad included for faster installation
• Powder coated almond color finish
• Modular design allows access from all sides
Fuel System
• Operates on liquefied petroleum gas or natural gas
• Field convertible from natural gas to liquid propane
• Dual 12v D.C. positive lock-off valves for added safety
Cooling System
• Low maintenance air/oil cooling
• High temperature shutdown protection
Digital Remote Start/Stop Controller
• Automatic remote start
• Overspeed protection
• Overcrank protection
• Battery condition monitoring
• Underspeed protection
• On-off-auto selector switch
• Engine oil pressure protection
• Hour meter
Warranty
• 3 year / 1500 hour limited warranty (comprehensive)
• 5 year / 1500 hour extended limited warranty (engine/alernator)
Accessories
• Engine block heater kit
• Maintenance Kit
.jpg)
PART NUMBER |
LIST PRICE |
OUR PRICE |
| SC150MYAY03 |
FOB Miami $ 12,233 |
FOB Miami $ 9,786.40 |
| SC150HYA002 |
FOB Miami $ 12,187 |
FOB Miami $ 9,749.60 |
| SC190MYA002 |
FOB Miami $ 13,118 |
FOB Miami $ 10,494.40 |
| SC230HYA002 |
FOB Miami $ 12,880 |
FOB Miami $ 10,304.00 |
Main features
| Rated prime power (PRP) |
: |
14 kW |
| Voltage |
: |
480, 277 V |
| Voltage |
: |
208, 120 V |
| Voltage |
: |
240, 120 V |
| Frequency |
: |
60 Hz |
| Engine manufacturer |
: |
Yanmar |
| Fuel |
: |
Diesel |
| Engine governor |
: |
Mechanical |

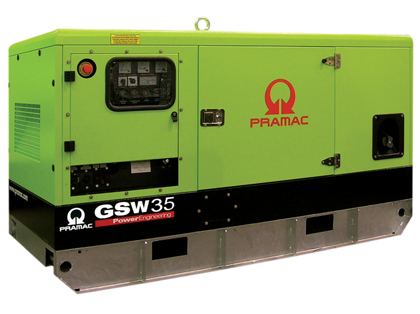

GSW Series - Yanmar
The GSW Series provides the most professional way to fulfill power requirements with highest reliability and excellent performance.
| Rated prime power (PRP) |
14 kW |
| |
17 kVA |
| Emer Power (LTP) |
15 kW |
| |
19 kVA |
| Voltage |
480, 277 V |
| Frequency |
60 Hz |
| Power factor |
0,8 cosPhi |
|
| Rated prime power (PRP) |
14 kW |
| |
17 kVA |
| Emer Power (LTP) |
15 kW |
| |
19 kVA |
| Voltage |
208, 120 V |
| Frequency |
60 Hz |
| Power factor |
0,8 cosPhi |
|
| Rated prime power (PRP) |
13 kW |
| |
13 kVA |
| Emer Power (LTP) |
15 kW |
| |
15 kVA |
| Voltage |
240, 120 V |
| Frequency |
60 Hz |
| Power factor |
1 cosPhi |
|
| Engine manufacturer |
Yanmar |
| Model |
3TNV88 |
| Fuel |
Diesel |
| Exhaust emission |
EPA Tier 4 |
| Cooling system |
Water |
| Nominal operating speed |
1800 rpm |
| Displacement |
100,2 cu inches |
| Number of cylinders and disposition |
3, inline |
| Aspiration |
Natural |
| Power (PRP) |
22 bhp |
| Power (LTP) |
24 bhp |
| Fuel consumption (III) at 75% PRP |
0,90 gal/h |
| Fuel consumption (III) at 100% PRP |
1,19 gal/h |
| Specific fuel consumption at PRP |
0,397 lb/hph |
| Engine governor |
Mechanical |
|
| Alternator specifications |
| Alternator manufacturer |
Stamford |
| Model |
BCI 184E |
| Power at 27°C (480 V) |
24 kWE |
| |
30 kVA |
| Power at 27°C (208 V) |
22 kWE |
| |
28 kVA |
| Power at 27°C (240 V) |
13 kWE |
| |
16 kVA |
| Insulation class |
H |
| Protection grade |
IP 23 |
| Voltage regulation system |
Electronic, 1,5% |
|
| Fuel tank capacity |
21,00 gal |
| Autonomy (III) at 75% PRP |
22 h |
| Autonomy (III) at 100% PRP |
16,5 h |
|
| Length |
70,91 in |
| Width |
32,72 in |
| Height |
51,22 in |
| Weight (dry) |
1.543,23 lb |
|
TO DOWNLOAD CATALOG CLICK OVER THE LOGO |
|
